770N 24V

Max width single leaf

2 - 3.5 m

Max weight

500 Kg

Use frequency

Continuous use

Bộ vận hành 770 - 24V

  • Invisible operator
  • Operator may be accessed without removing the leaf
  • Protection level IP 67
  • Irreversible
  • Manual release with double lever accessible from the interior or exterior of the property (Patented)
  • New electronic control with anti-crushing safety device and virtual encoder inversion on obstacles
  • Emergency battery to ensure operation in case of power failure (optional 24V)
This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: S800H   Roller   Diablo

THÔNG SỐ KỸ THUẬT

Model 770N 24V
Power Supply Voltage 230V~ 50 Hz
Electric motor With brushes 24V
Max Power 70 W
Max Torque 330 Nm
Max angular speed 6°/s
Max leaf opening angle 110° (140° and 180° with optional kit)
Operating ambient temperature -20 °C ÷ +55 °C
Thermal protection -
Protection class IP67
Weight 12 Kg (with supporting case 14 Kg)
Dimensions (WxDxH) Operator360 x 150 x140 (carrier case 430 x 307.5 x 214) mm

MÔ HÌNH



Model

Use

Electronic

equipment

Item code

Max width

single leaf

Max

weight (*)

Use

frequency

770N 24V

2 m - (3.5 with electric lock)

500 Kg

Continuous use

Not included

10675301

The operator pack 770N 24V includes: an electromechanical operator, installation accessories, two release keys.

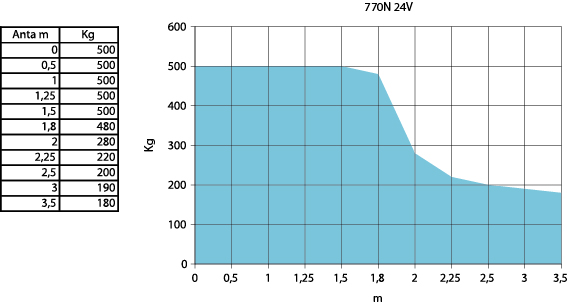

The supporting case pack includes: a supporting case, a stainless steel cover, a leaf support bracket with system lever release, two release keys, installation accessories. (*) See graphics on next page.

HƯỚNG DẪN LẮP ĐẶT



__logo__WireViolet__ __logo__A__ Low voltage cabling

__logo__WireBlack__ 3x0.50 mm2 cable

__logo__WireGreen__ 2x0.50 mm2 cable

__logo__WireYellow__ 2x1.50 mm2 cable

__logo__WireRed__ 2x0.50 mm2 cable

__logo__WireCyan__ __logo__B__ Power cabling (230V)

__logo__WireBlue__ 2x1.5 mm2 +T cable



Ref

Qty

Description

Item code

1

2

24V 770N Actuators

10675301

1

2

Supporting case with release system (Patented)

490065

2

1

FAACLIGHT 24V flashing light

410014

3

1

Key operated button T10

401010001-36

4

1

E024S Electronic equipment with enclosure

790286

4

1

XF 433 MHz receiver

319006

5

2

XP 15 B pair of photocells

785149

5

2

Column (Max height 628 mm)

401039

5

2

Foundation plate for SAFEBEAM / XP 15 column

737637

__

1

XT2 433 SLH LR 2-channel transmitter

787007



This solution can also be found in the kit:

POWER 24V kit

PHỤ KIỆN VÀ LINH KIỆN

Electronic control boards

E024S Electronic equipment with enclosure included in 391 E Thông tin chi tiết

Item code: 790286

E124 Electronic equipment with enclosure Thông tin chi tiết

Item code: 790284

Accessories

BUS XIB interface If using board E045 or E024S with photocell no BUS)

Item code: 790062

Battery support kit emergency (specific for E124)

Item code: 390926

XBAT 24 emergency battery kit (not compatible with E124)

Item code: 390923

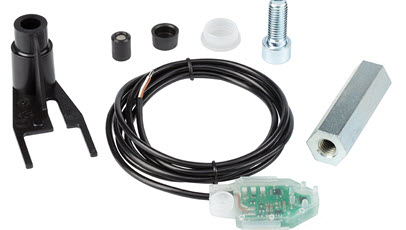

Encoder unit for 770N

Item code: 404035

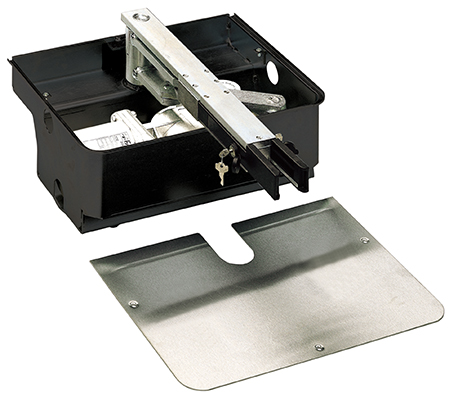

Stainless steel supporting case with release system (Patented)

Item code: 490110

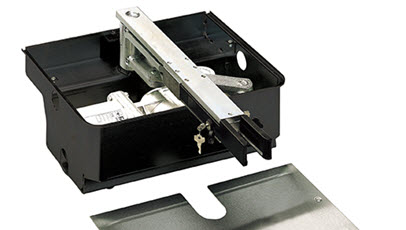

Supporting case with release system (Patented)

Item code: 490065

Opening to 140° kit

Item code: 390612

Opening to 180° kit

Item code: 490111

Magnetic limit switch 445D, E145, E124 board kit

Item code: 490126

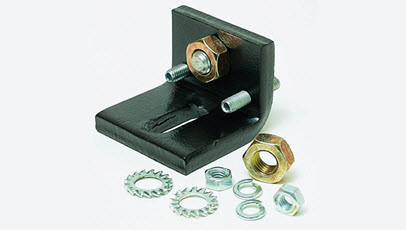

Internal opening mechanical stop

Item code: 722121

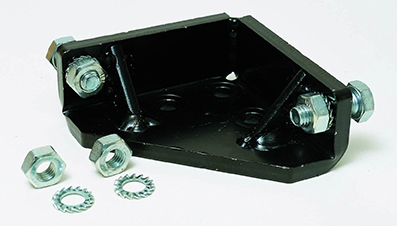

Internal closing mechanical stop

Item code: 722122

Release lock with customised key

Item code: 712104001-36

Spares
