Roller

Max weight

500 Kg

Max width single leaf

2 - 3.5 m

Use frequency

Continuous use

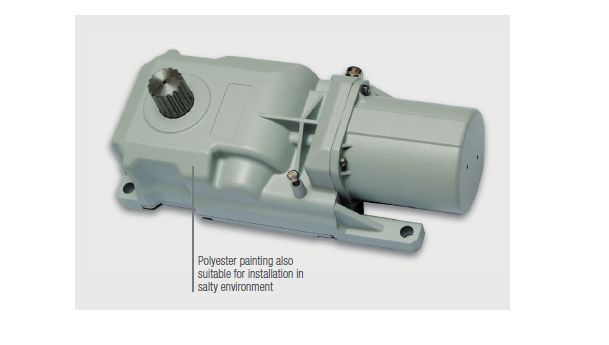

Bộ Vận hành Roller 24VDC

Invisible operator
Operator may be accessed without removing the leaf
Protection level IP 67
Irreversible
Manual release with double lever accessible from the interior or exterior of the property (Patented)
New electronic control with anti-crushing safety device and virtual encoder inversion on obstacles
Emergency battery to ensure operation in case of power failure (optional 24V)

This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: S800H 770N 24V Diablo

THÔNG SỐ KỸ THUẬT

Model	Roller 24 VDC
Power Supply Voltage	230V~ 50 Hz
Electric motor	With brushes 24V
Max Power	70 W
Max Torque	330 Nm
Max angular speed	6°/s

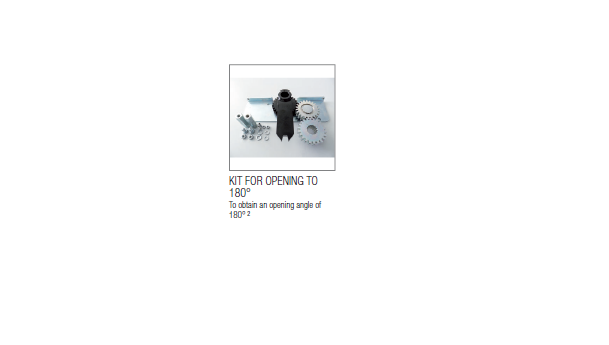

Max leaf opening angle	110° (140° and 180° with optional kit)
Operating ambient temperature	-20 °C ÷ +55 °C
Thermal protection	-
Protection class	IP67
Weight	12 Kg (with supporting case 14 Kg)

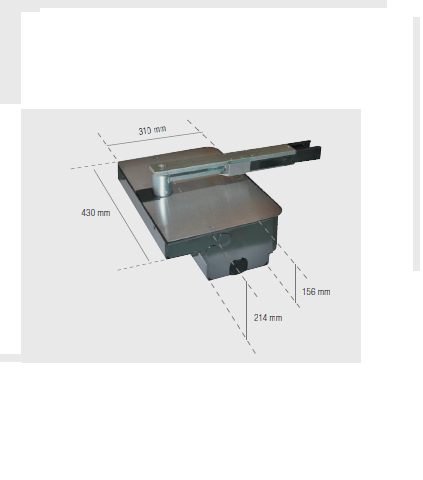

Dimensions (WxDxH)	Operator360 x 150 x140 (carrier case 430 x 307.5 x 214) mm

MÔ HÌNH

Model	Use	Electronic equipment	Item code
Roller	2 m - (3.5 with electric lock)	500 Kg	Continuous use	Not included	6170080

Model

Use

Electronic

equipment

Item code

Max width

single leaf

Max

weight (*)

Use

frequency

Roller

2 m - (3.5 with electric lock)

500 Kg

Continuous use

Not included

6170080

The operator pack Roller includes: an electromechanical operator, installation accessories, two release keys.

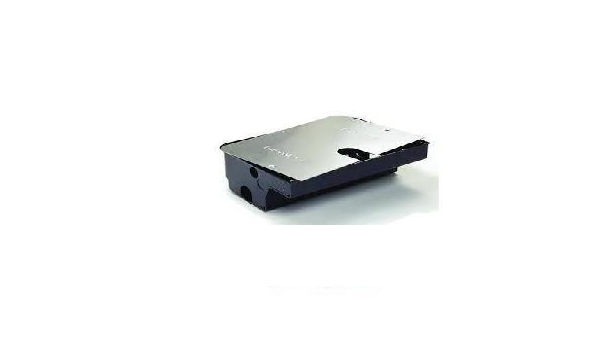

The supporting case pack includes: a supporting case, a stainless steel cover, a leaf support bracket with system lever release, two release keys, installation accessories. (*) See graphics on next page.
