J355 M30-P1 HA

Type of operator

Automatic

Height

1,000 mm

TRỤ CHẶN XE AN NINH TỰ ĐỘNG J355 M30-P1 HA

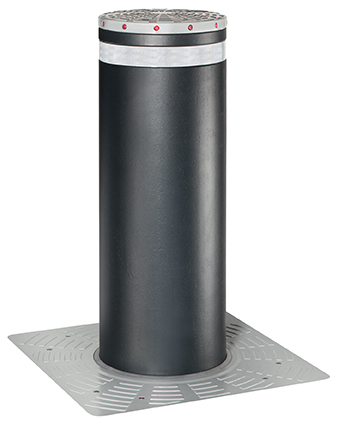

The AUTOMATIC FAAC J355 HA M30-P1 bollard is designed and tested to protect sensitive areas such as airports, embassies, consulates, banks, ports, etc.

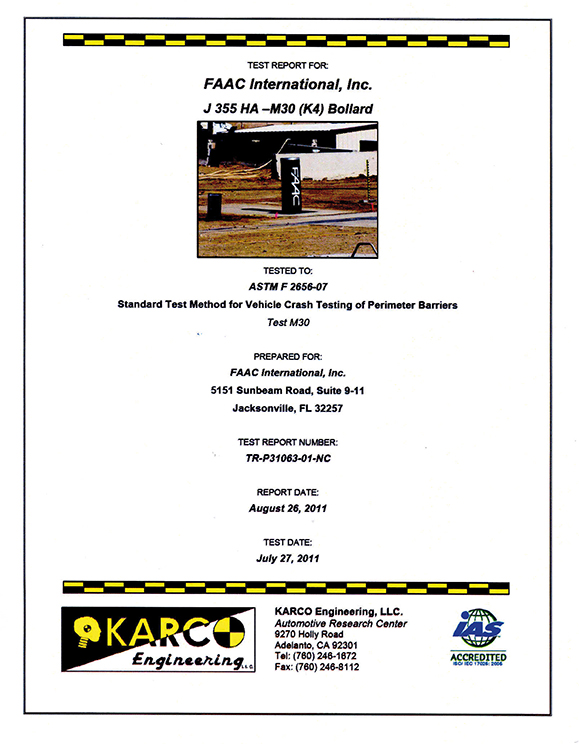

The FAAC J355 HA M30-P1 bollard was tested according to the AST M F 2656-07 standard, obtaining the certification for the best possible penetration class.

Classification M30-P1 indicates in fact that the bollard FAAC J355 is able to stop a 6,800 kg lorry travelling at 50Km/h (=30M/h) with just 1 metre of total penetration (P1).

The bollard is also available in the EFO (Emergency Fast Operation) version, with very fast raising speed (1.5s) enhancing the protective level offered.

Tested according to U.S. ASTM F 2656-07 M30 standards
“Full optional” product; equipped with the main accessories
Guaranteed for high frequency use
Raised position lock guaranteed even in the event of a power cut
Extreme care in the selection of materials

Có thể bạn quan tâm: J355 M30-P1 F J275F J275SA

THÔNG SỐ KỸ THUẬT

Model	J355 HA M30-P1 J355 HA M30-P1 Stainless steel J355 HA M30-P1 EFO J355 HA M30-P1 EFO Stainless steel
Type of operator	Hydraulic operator
Height of cylinder from ground	1.000 mm
Cylinder diameter	355 mm
Type of cylinder material	Steel S355JR EN10210 (16mm thick)
Type of cylinder treatment	Cataphoresis and polyester powder paint, dark grey metallised RAL 7021 Satin-finished AISI 316 jacket
Type of head material	Aluminium RAL 9006
Rise time	~6 s
Quick rise device	NO YES (EFO)
Emergency quick rise time	- ~1.5 s
Descent time	~2 s
Release device	optional
Power Supply Voltage	230V~ 50(60Hz)
Max Power	2500 W
Hydraulic unit protection class	IP67
Type of use	Use in security areas
Reflecting strip height	55 mm
Standard reflecting strip colour	White
Impact resistance	150000 J
Break-in resistance	656000 J
Overall weight	800 Kg
Pit weight	250 Kg
Bollard weight	550 Kg
Operating ambient temperature	-15°C / +55°C
Operating ambient temperature with heater	-40°C / +55°C
Dimensions of underground structure (WxDxH)	590 x 670 x 1.665 mm
Excavation dimensions (WxDxH)	3,200 x 1,600 x 1,800 mm
Connection cable	Standard 16+1 conductors, minimum section 1,5mm (not supplied)
Max connection cable length	50 m
Load class (EN 124)	C25 (25t)

MÔ HÌNH

Model	Height	Finish	Item code
Model	J355 HA M30-P1	1,000 mm	painted steel	116004
J355 HA M30-P1 EFO			116005

The product comes with:
16 mm thick steel cylinder with cataphoresis treatment and painted powder coated dark grey metallised RAL 7021 flashing light ring with central LED hydraulic lock in raised position (in the event of a power cut) emergency circuit for fast rise (EFO version only)

Model	Height	Finish	Item code
Model	J355 HA M30-P1	1,000 mm	satin-finished AISI 316L stainless steel	116034
J355 HA M30-P1 EFO			116035

The product comes with:
16 mm thick steel cylinder with cataphoresis treatment and satin-finished stainless steel «sleeve» flashing light ring with central LED hydraulic lock in raised position (in the event of a power cut) emergency circuit for fast rise (EFO version only)
