J275SA
Type of operator
Semi-Automatic
Height
600 mm

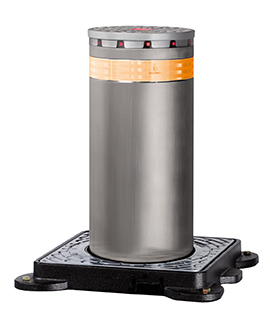

TRỤ CHẶN XE BÁN TỰ ĐỘNG J275SA
The Semi-Automatic retractable J275 SA traffic bollard is particularly suited to town centres and areas difficult to wire. In fact, thanks to a gas operator, raising and lowering is fully mechanical and does not require any electrical connections.
- Power supply and wiring not required
- Simple and safe movement, thanks to the specific unlocking key
- “Full optional” product; equipped with the main accessories
- Low position lock guaranteed against accidental release
- Extremely simple maintenance
Có thể bạn quan tâm: J355 M30-P1 F J355 M30-P1 HA J275F
THÔNG SỐ KỸ THUẬT
| Model |
J275 SA H600
J275 SA H600 Stainless steel
|
| Type of operator |
Single-acting gas operator
Single-acting gas operator
|
| Height of cylinder from ground |
600 mm
600 mm
|
| Cylinder diameter |
275 mm
275 mm
|
| Type of cylinder material |
Steel S235JR EN 10219 (7mm thick)
Satin-finished AISI 316L (6mm thick)
|
| Type of cylinder treatment |
Cataphoresis and polyester powder paint, dark grey metallised RAL 7021
Satin finish
|
| Type of head material |
Aluminium RAL 9006
Aluminium RAL 9006
|
| Release device |
Key operated (supplied)
Key operated (supplied)
|
| Reflecting strip height |
55 mm
55 mm
|
| Standard reflecting strip colour |
Orange
Orange
|
| Break-in resistance |
128000 J
207000 J
|
| Overall weight |
125 Kg
125 Kg
|
| Pit weight |
55 Kg
55 Kg
|
| Bollard weight |
70 Kg
70 Kg
|
| Dimensions of underground structure (WxDxH) |
560 x 560 x 950 mm
560 x 560 x 950 mm
|
| Excavation dimensions (WxDxH) |
1,000 x 1,000 x 1,250 mm
1,000 x 1,000 x 1,250 mm
|
MÔ HÌNH
|
Model |
Height |
Finish |
Item code |
|---|---|---|---|
|
J275 SA 600 |
600 mm |
painted steel |
116050 |
The product comes with:
- 7 mm thick steel cylinder with cataphoresis treatment and painted
- powder paint, dark grey metallised RAL 7021
- flashing light ring with central LED (*)
- mechanical lock in the raised position with special unlocking key
- Release key (2 pieces)
|
Model |
Height |
Finish |
Item code |
|---|---|---|---|
|
J275 SA 600 |
600 mm |
satin-finished AISI 316L stainless steel |
116060 |
The product comes with:
- 6 mm thick stainless steel cylinder with satin-finished treatment
- flashing light ring with central LED (*)
- mechanical lock in the raised position with special unlocking key
- Release key (2 pieces)
PHỤ KIỆN VÀ LINH KIỆN
Accessories
Pit JP275/600 for bollard H600 complete with counter frame
Item code: 116100
Optional accessories
Pit cover JC275
Item code: 116201
Release keys kit (5 keys)
Item code: 390084
