Diablo

Max weight

250 Kg

Max width single leaf

1.5 - 2.5 m

Use frequency

Continuous use

Bộ vận hành Diablo 24 VDC

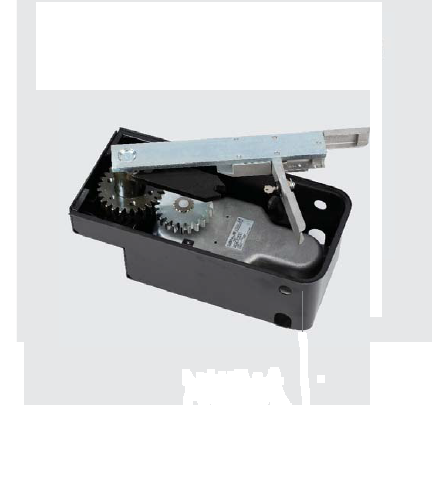

  • UNDERGROUND OPERATOR

    FOR SWING GATES

  • Available versions: 24V
  • It moves leaves up to 2.5m or max 250Kg each leaf
  • Optional absolute encoder, when combined with Brain 15 control board it allows: absolute position reading, precise movement and compliance to safety standards
  • Release through a user friendly accessory lever and customised key - PATENT
  • Optional absolute encoder
  • Steel foundation box with cataphoresis treatment, with compact dimensions
  • Max opening angle: 180°
  • Optional mechanical leaf stop in opening and closing

This product can become SAFE &GREEN with appropriate accessories

Có thể bạn quan tâm: S800H   770N 24V   Roller

THÔNG SỐ KỸ THUẬT

Model Diablo
Power Supply Voltage 230V~ 50 Hz
Electric motor With brushes 24V
Max Power 70 W
Max Torque 330 Nm
Max angular speed 6°/s
Max leaf opening angle 110°
Operating ambient temperature -20 °C ÷ +55 °C
Thermal protection -
Protection class IP67
Weight 6.5 Kg

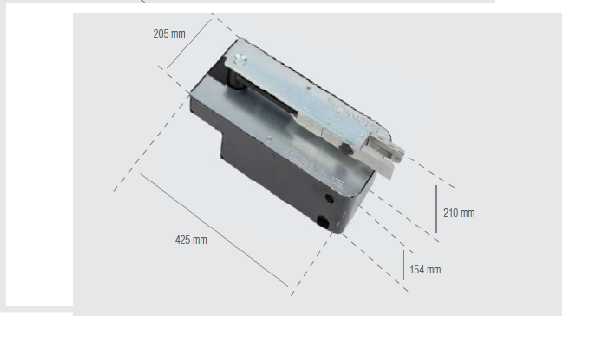

Dimensions (WxDxH)

MÔ HÌNH



HƯỚNG DẪN LẮP ĐẶT

Code

Name

Version

Voltage

Leaf max. length

Use

6170082

Diablo

Non-reversible

24V

2.5 m.

Residential


PHỤ KIỆN VÀ LINH KIỆN

Accessories

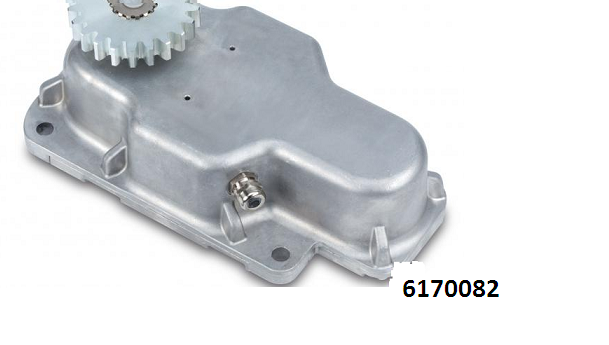

Bộ Vận hành Diablo 24VDC Thông tin chi tiết

Item code: 6170082

Bộ Đế đỡ bằng thép, nắp Inox Thông tin chi tiết

Item code: 6100319

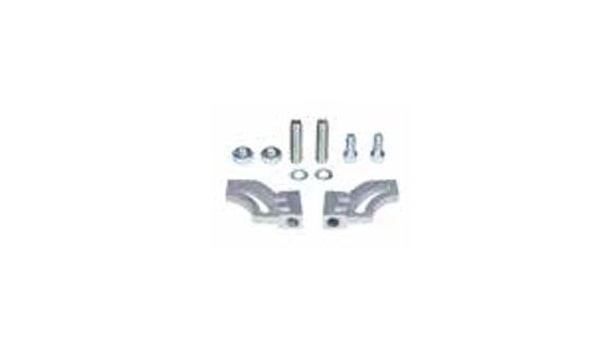

Chặn đóng, mở bằng cơ khí Thông tin chi tiết

Item code: 6100320
